Key Features
Designed for KNX Bus Systems: Ensures stable and fast data transmission for smart home and building automation.
Twisted Pair + Shielding: 2×2 core structure with shielding minimizes electromagnetic interference (EMI).
Reliable Size: 2×2×0.8 mm², compatible with common installation standards.
Durable Materials: Copper conductor with high-grade PVC/PE/LSZH jacket for long service life.
Easy to Install: Flexible construction makes it simple to pull through conduits or lay under floors and walls.
Product Description

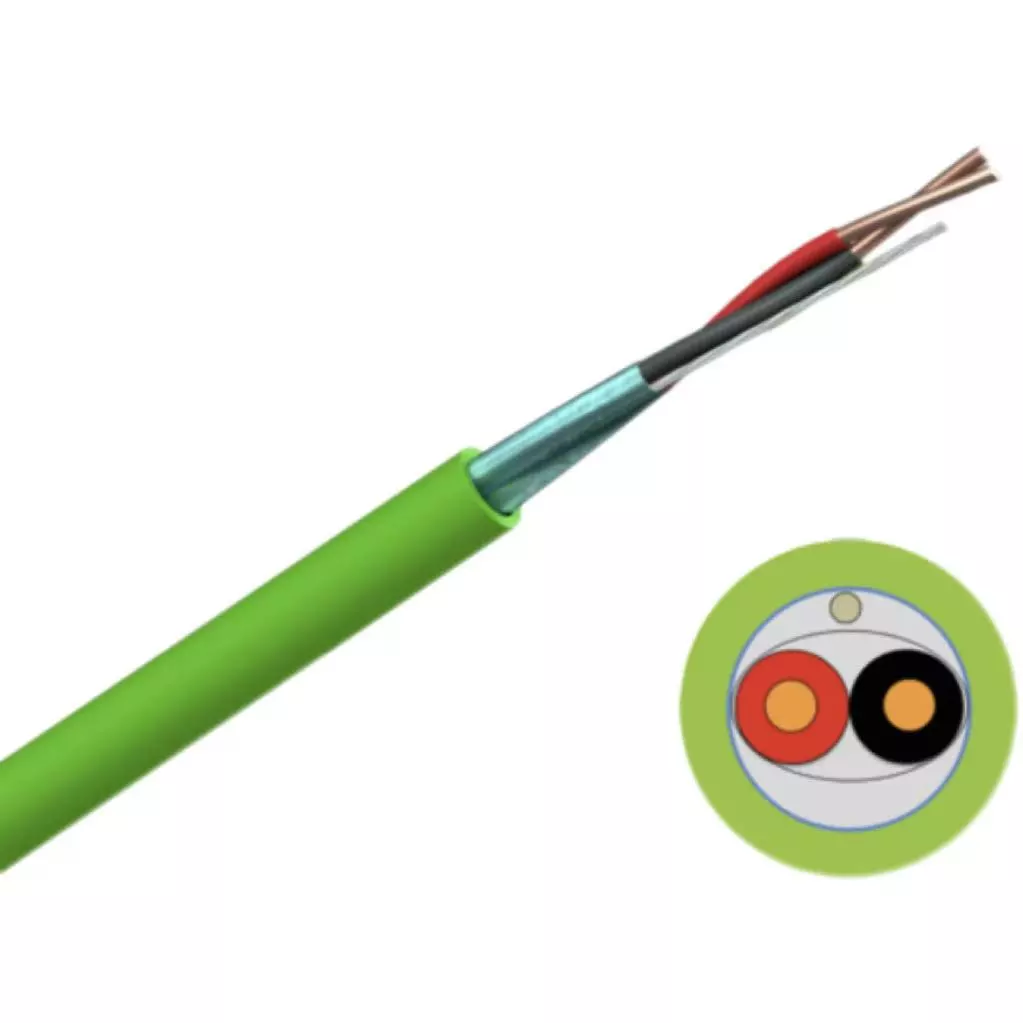

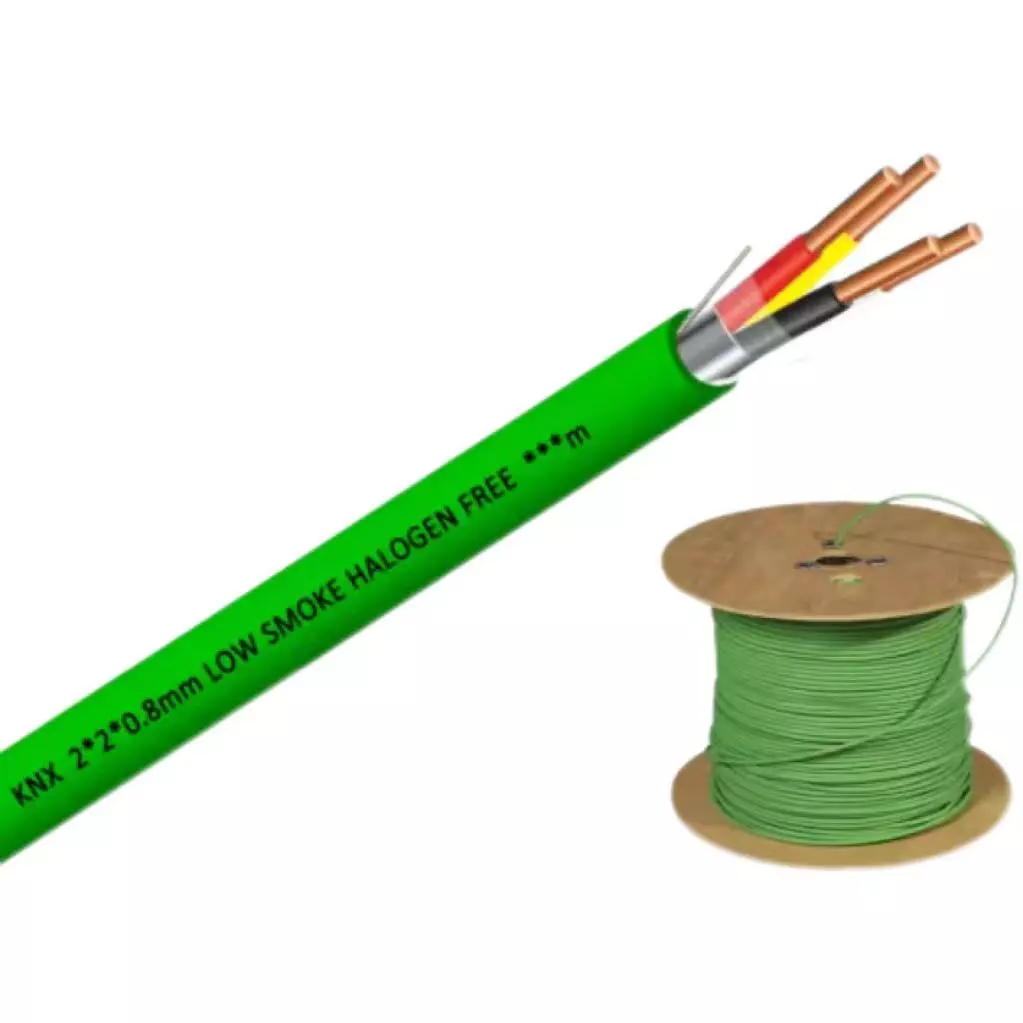

This KNX bus cable is specially developed for building automation and smart home systems. With a double-core twisted pair structure and shielding layer, it provides excellent protection against signal loss and interference, ensuring accurate data transmission even over long distances.
The conductor size of 2×2×0.8 mm² allows stable performance in both residential and commercial installations. The robust outer sheath, made from weather- and UV-resistant material, makes the cable suitable for indoor and controlled outdoor environments.
Typical applications include KNX protocol-based control of lighting, shading, HVAC, and security systems. Whether for new installations or retrofit projects, this bus cable offers a reliable backbone for intelligent network communication.
Specifications
|
Parameter
|
Details
|
|
Conductor
|
Copper, solid/stranded
|
|
Core Size
|
0.8 mm² per conductor (~20–22 AWG equivalent)
|
|
Structure
|
2×2 cores (twisted pair + shielding)
|
|
Shielding
|
Aluminum foil or braid shielding
|
|
Jacket Material
|
PVC / LSZH / PE (customizable)
|
|
Temperature Range
|
-20°C to +70°C
|
|
Installation
|
Indoor / outdoor (with proper protection)
|
Applications
KNX bus cable wiring for smart homes and buildings
Lighting, HVAC, and shading control in commercial buildings
Hotels, offices, and conference centers requiring intelligent automation
Retrofit projects upgrading existing buildings with modern bus systems
Why Choose Our Bus Cable
Stable Signal Transmission – Shielded structure minimizes EMI and guarantees reliable communication.
Durability – Premium sheath resists wear, heat, and UV exposure.
Easy Installation – Flexible design makes wiring simple and efficient.
Wide Compatibility – Works with global KNX systems and components.
Cost-Effective – High quality at a competitive price, suitable for bulk orders.
Installation Tips
Avoid sharp bends; bending radius should be at least 10× cable diameter.
Keep distance from high-voltage or heavy-load power cables.
For outdoor use, select UV-resistant sheath or add extra protection.
Store in a dry environment, away from direct sunlight or water exposure.
We have alarms on extruding insulation andjacket, to keep 100% quality.
Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.
10
No. of Production Lines:Above 10
7
Number of Foreign Trading Staff:7
3
The company has 3 factories
Our workshops and certifications
Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.
Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.
Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.
What is the lifespan of a typical electrical cable?
The lifespan can vary widely based on the type of cable and environmental factors, but many cables can last 20 years or more when properly installed and maintained.
What is your sample policy?
As a supplier, we believe that samples are necessary for both of us and our policy is to provide free samples whenever possible. However, if the sample structure is very complicated and we don't have it in stock and it needs to be customised, in this case we have to charge a sample fee. About the sample shipment, you need to pay the shipping fee, you can prepay us the shipping fee we help to send it by express agent, you can also choose express shipping fee to pay.
Conductor Structure of Power Cable
1. Conductors comply with IEC, AS/NZS and BSI standard requirements
2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.
3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
