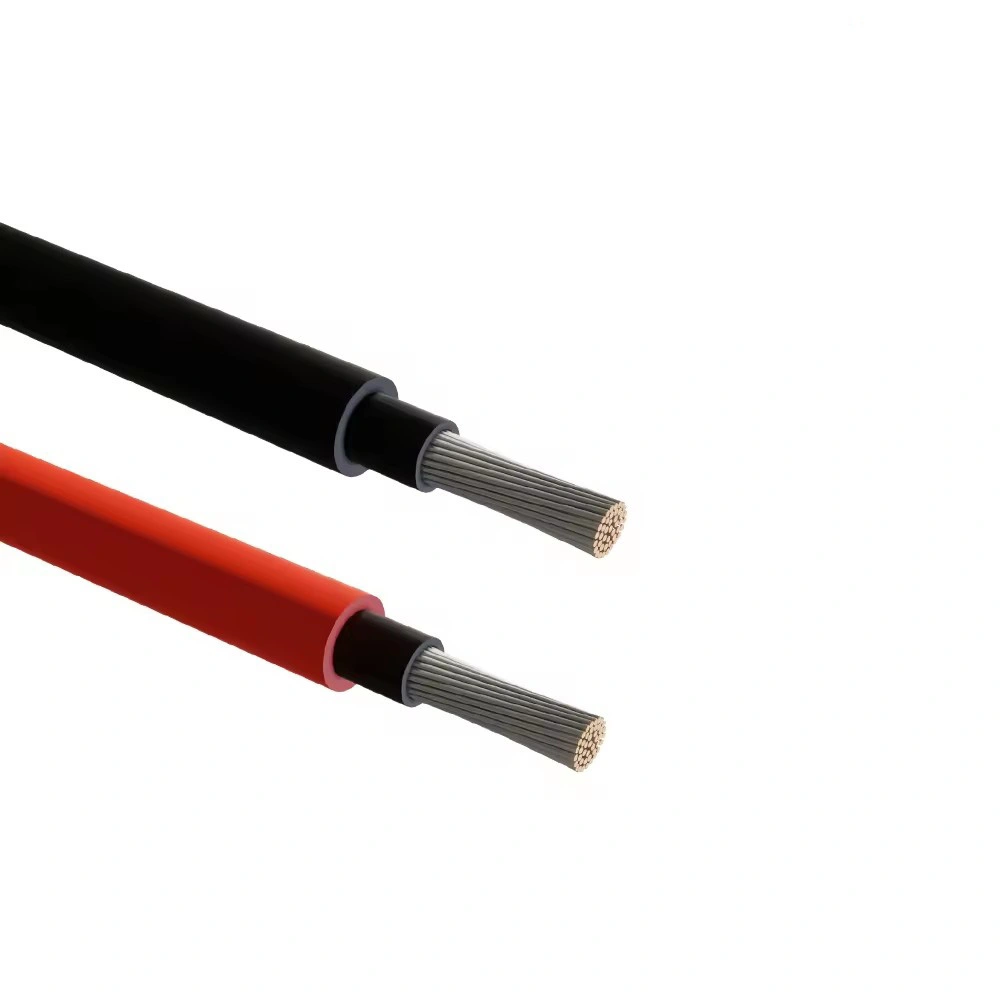

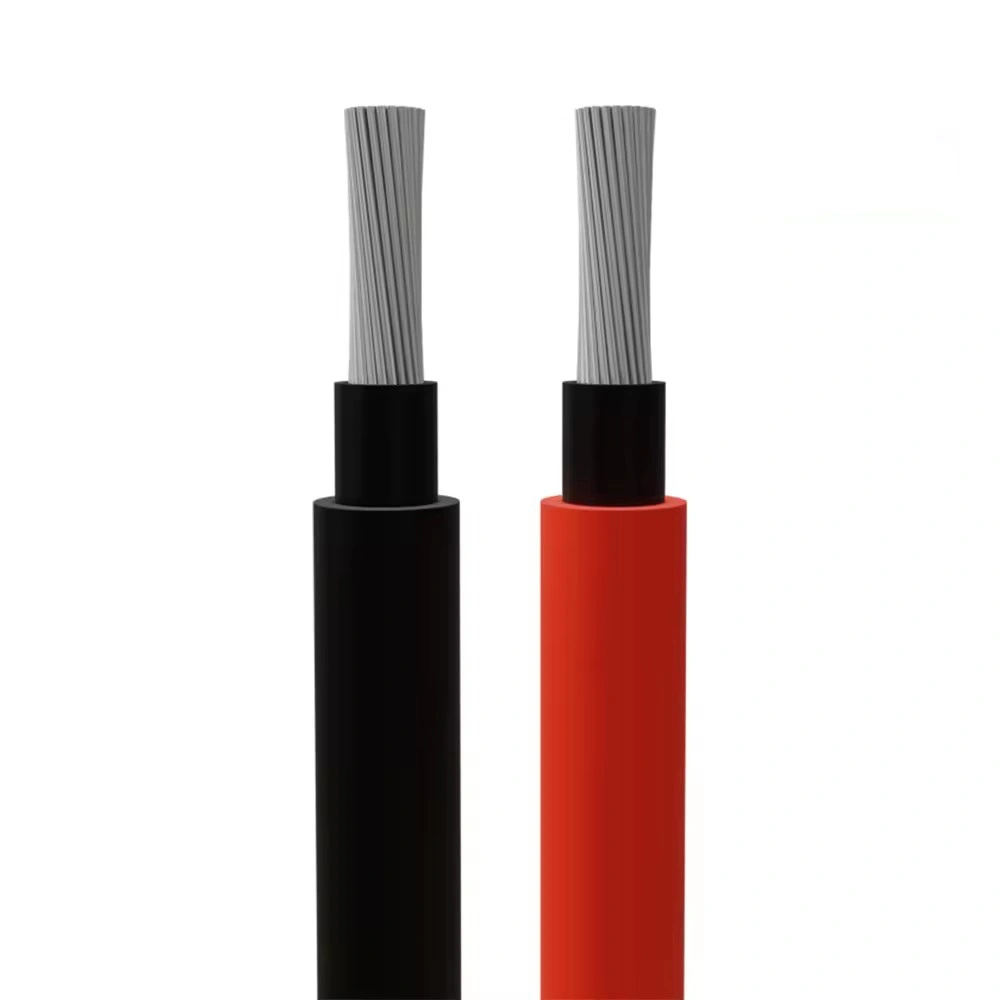

Wholesale TUV UL XLPE Insulated Solar Wire 2.5MM 4MM 6MM PV DC Panel Power Cable

1、Product Description

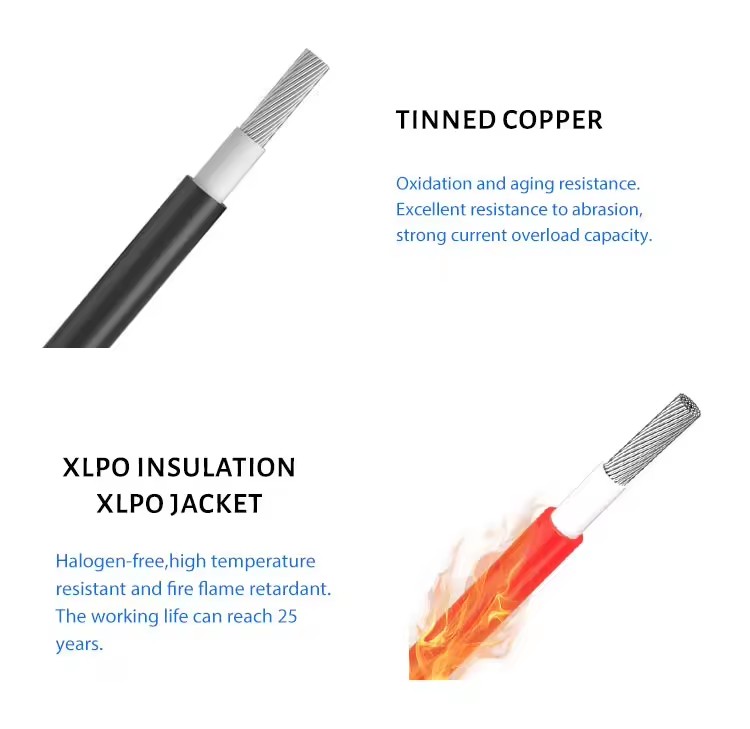

1. Tinned copper conductor, High current carrying capacity.
2. XLPO dual wall insulation is excellent resistance to UV, oil, greases, oxygen, and ozone and excellent resistance to abrasion.
3. Halogen-free, flame retardant, low toxicity

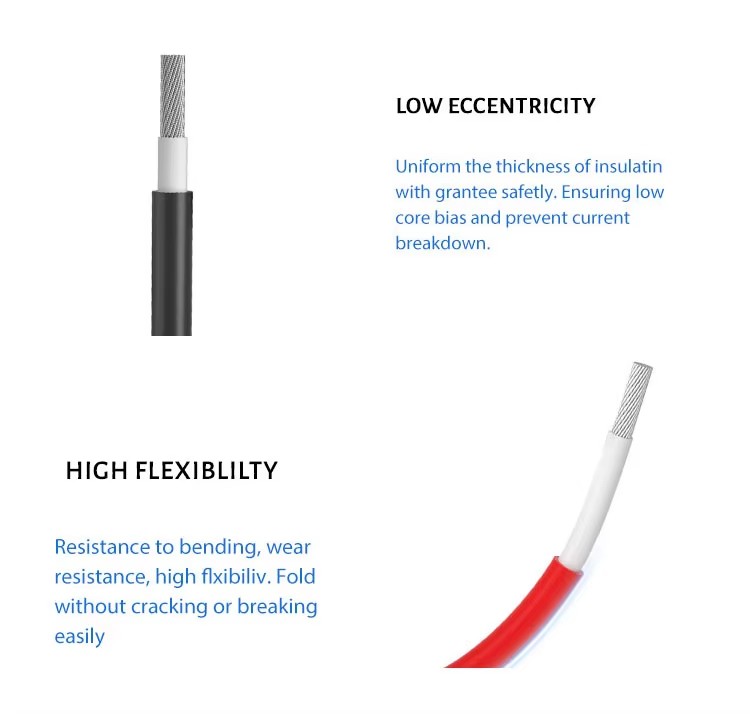

4. Excellent flexibility and stripping performance.

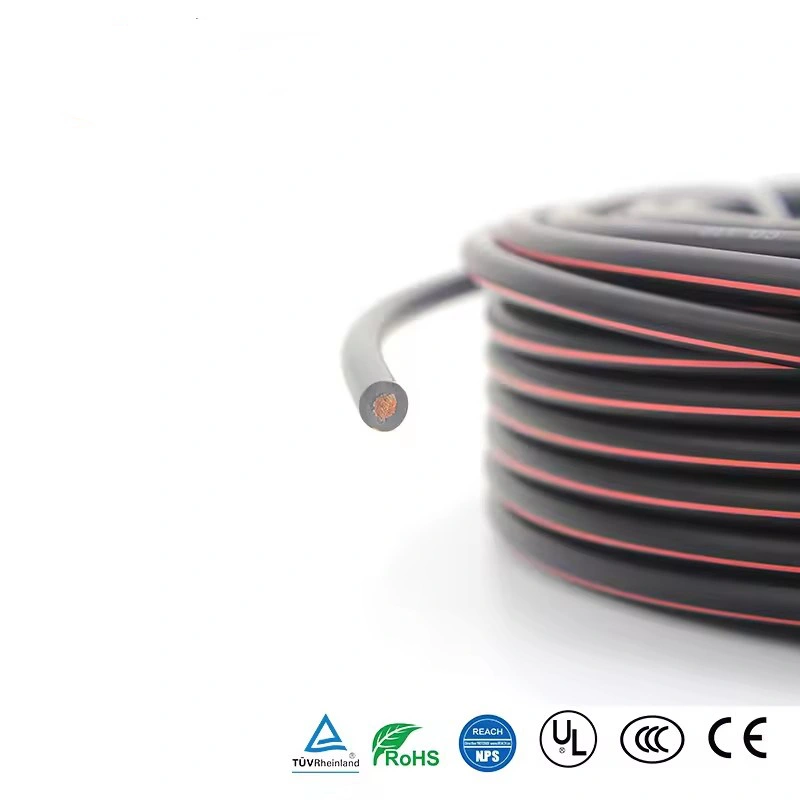

5. TUV and UL approved, according to UL 4703 / EN 50618 / IEC 62930.
6. solar cable is suitable for complex environments, temperature range of -40~+90°C

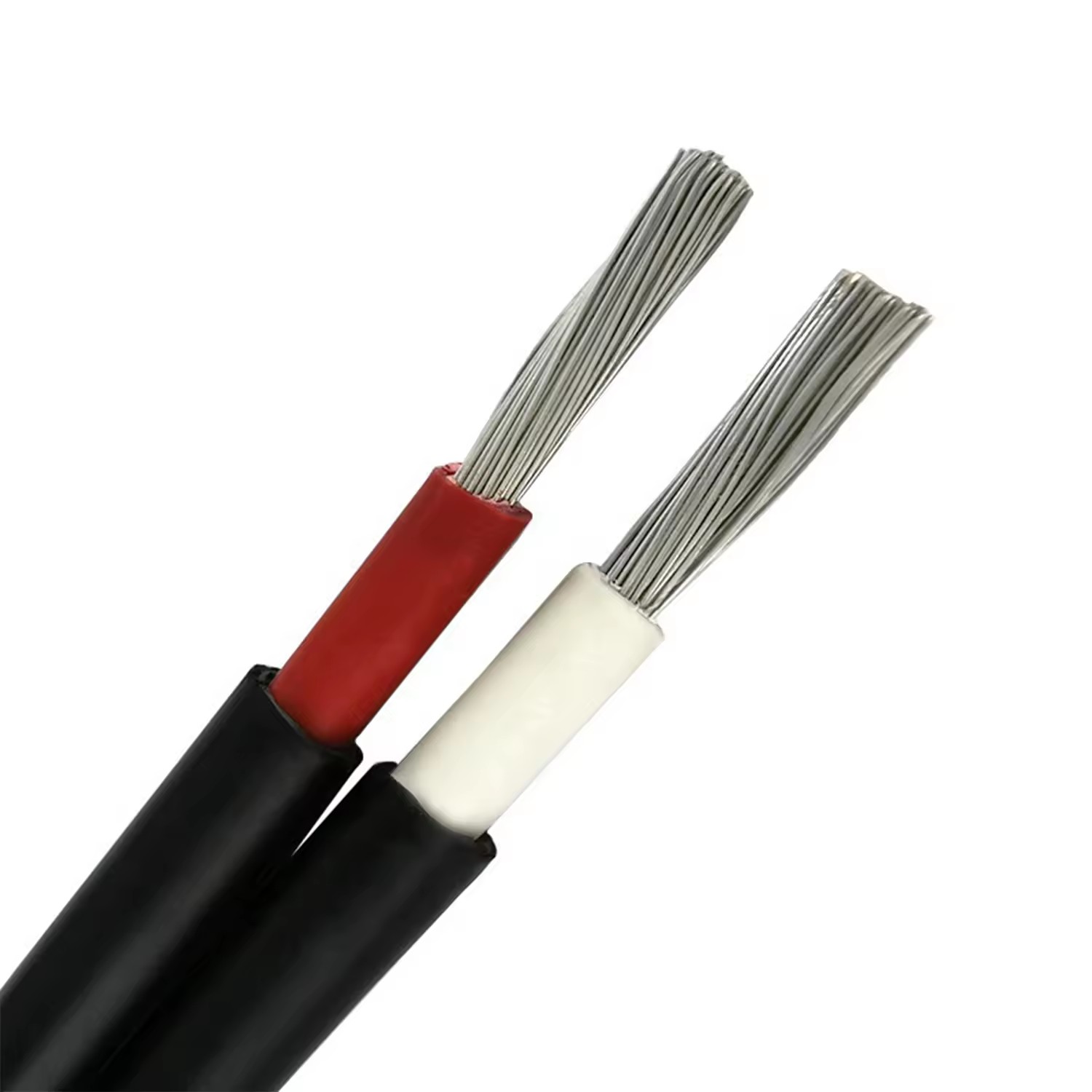

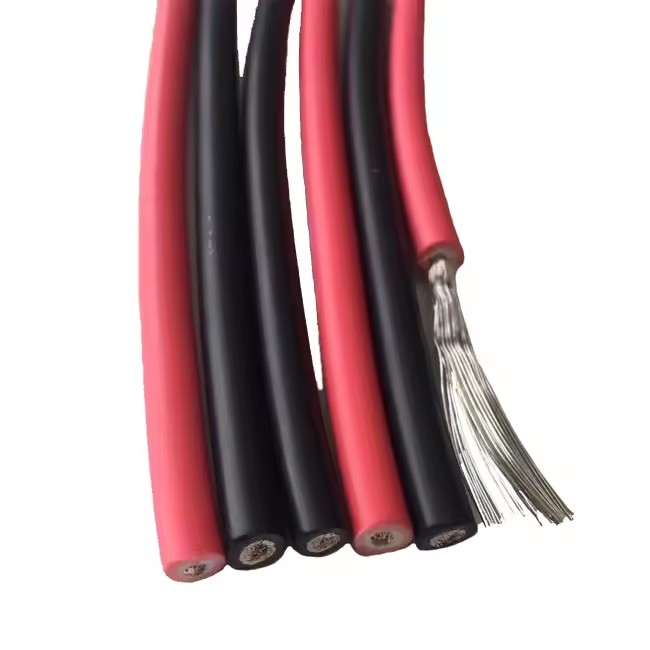

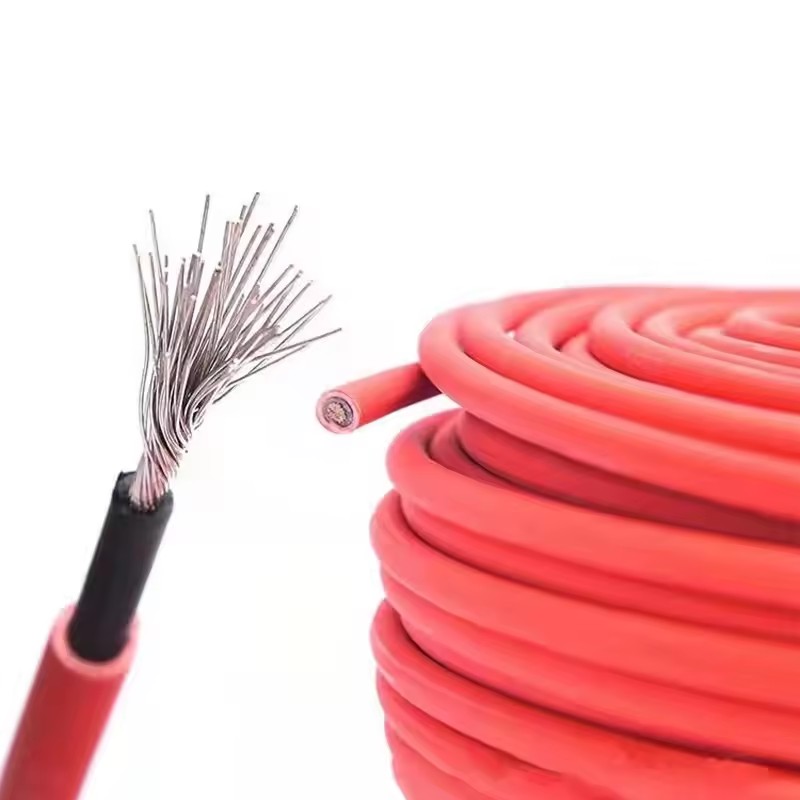

Solar Copper Wire

2、Product Parameters

Construction（awg）	Conductor Construction（n×mm）	Conductor（mm）	Outer（mm）	Resistance Max（Ω/Km）	Current Carrying Capacity（A）
16AWG	30×0.25	1.58	4.9	13.3	30
14AWG	50×0.256	2.06	5.45	7.98	41
12AWG	56x0.3	2.58	6.15	4.75	55
10AWG	84x0.3	3.15	7.15	3.39	70
8AWG	142x0.3	4	9.05	1.95	98
6AWG	228x0.3	5.7	10.2	1.24	132
4AWG	361x0.3	6.8	12	0.795	176
2AWG	494x0.3	8.8	13.8	0.565	218
1/0AWG	418x0.39	10	16	0.393	280
2/0AWG	589x0.39	11.8	18.4	0.277	350
3/0AWG	798x0.39	13.8	21.3	0.21	410

3、Product Features

The 0.6/1KV solar cable is a tinned copper conductor, XLPO insulation, and LSZH sheath, which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.

XLPE Insulated Solar Cable

4、Lead Time & Sample:

Quantity (meters)	1 - 1000	1001-10000	10001 - 50000	> 50000
Lead time (days)	2	10	15	To be negotiated
Maximum order quantity	100 meters
Sample Prices	Free

5、Standard

Our Solar cable can be manufactured according to to IEC 60502,IEC60332,IEC60754.
Some indexes are superior to above international standard.
PS: we also can produce as per the BS, NFC, ASTM standard according to customer's request.

About us

Suke Cable Manufacturing

We have alarms on extruding insulation andjacket, to keep 100% quality.

Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.

No. of R&D Staff: 38

No. of Production Lines:Above 10

Number of Foreign Trading Staff:7

130

130 technical staff

The company has 3 factories

Our workshops and certifications

Suke Insulaion Flexible Wire Cable Manufacturing

OEM ODM Wire Cable Machine Of Workshop

Copper Heat-Resistant Wire Cable Production Workshop

Inspection Workshop Of Cable Factory

Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.

Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.

FAQ

What is building wire?

Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.

How do I know if a cable is compliant with standards?

Look for certification marks or labels on the cable, such as those from IEC, UL, or other relevant regulatory bodies that indicate compliance with safety and performance standards.

What are armoured cables?

Armoured cables have an additional layer of protection (usually metal) to prevent physical damage. They are often used in harsh environments or where cables may be exposed to impact.

Conductor Structure of Power Cable

1. Conductors comply with IEC, AS/NZS and BSI standard requirements

2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.

3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
