Product Description

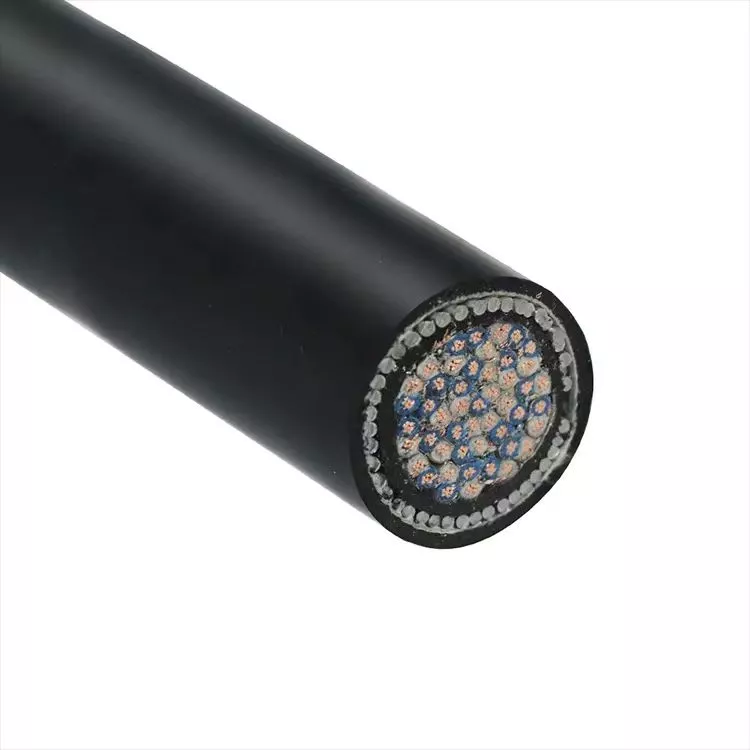

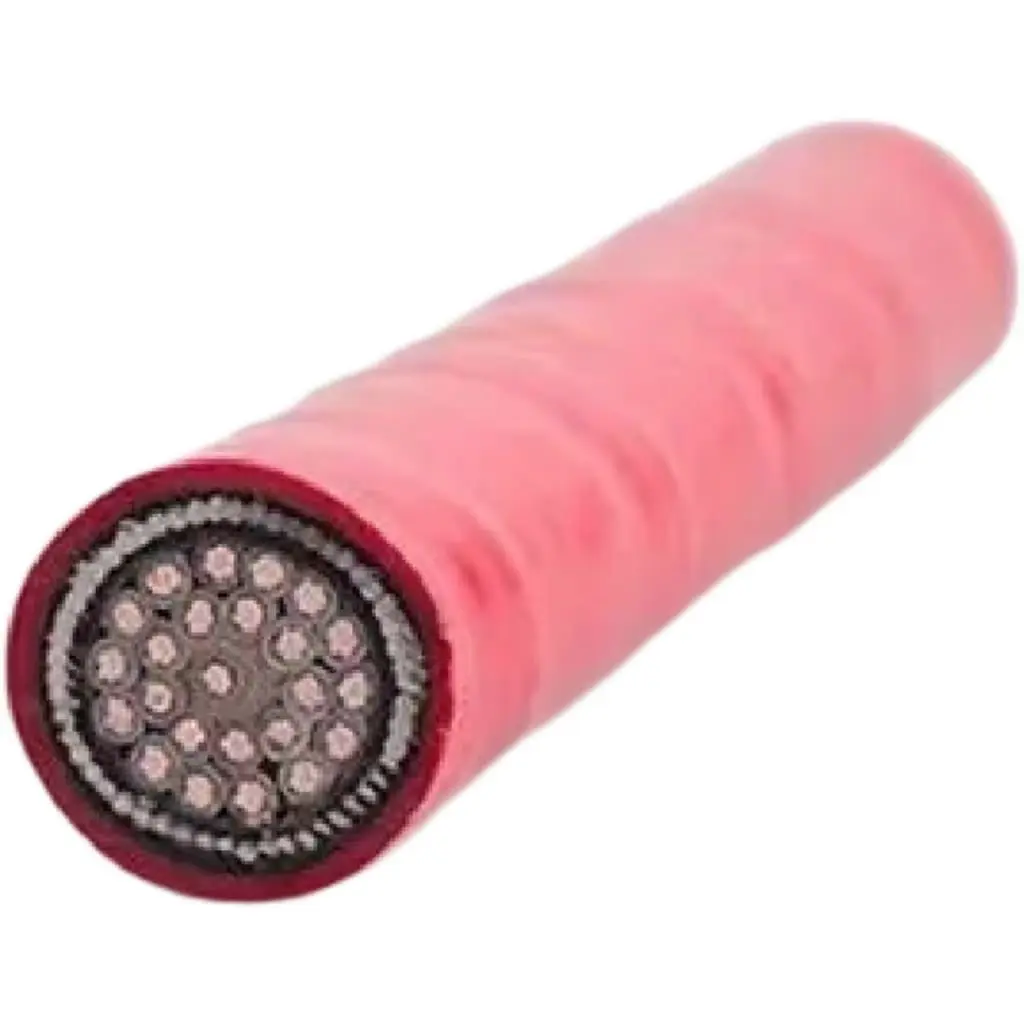

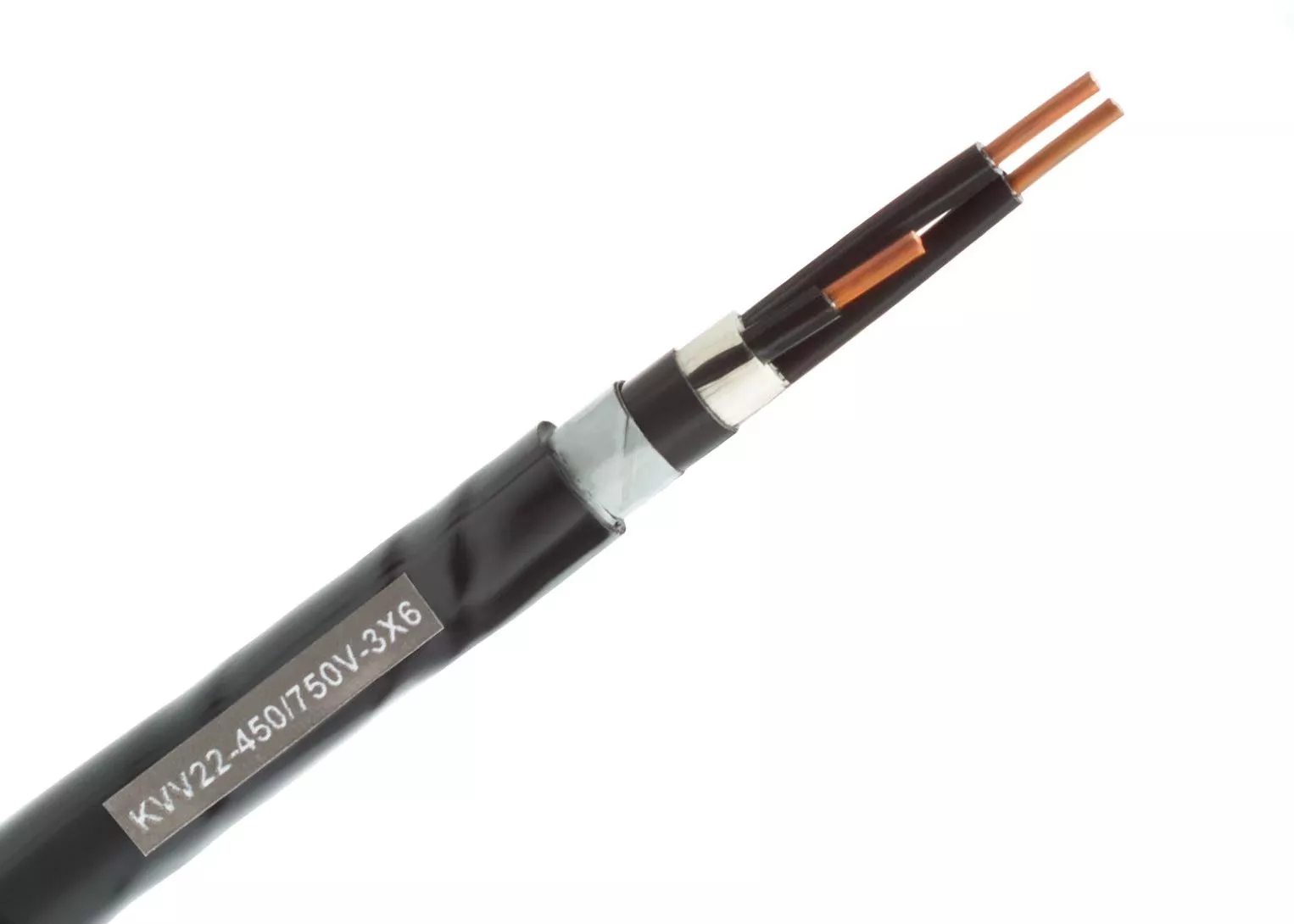

450V/750V SWA PVC PE XLPE Insulated Screened Armoured Control Cable

1.Standards:

Manufacture according to GB/T 9330,IEC 60502-1

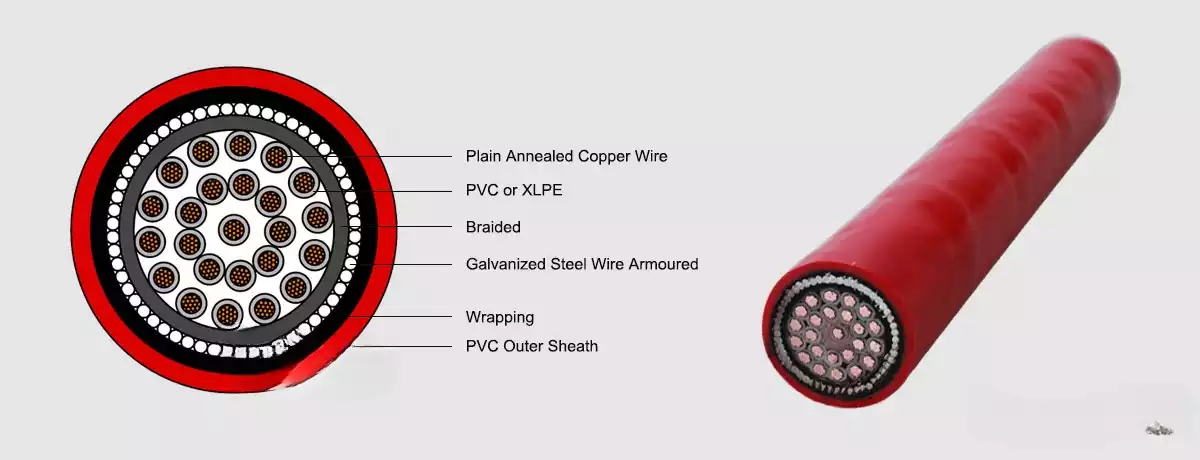

2. Cable Structure:

2.1 Rated voltage: 450/750V

2.2 Conductor: Copper wire /tinned-copper wire, Class1, Class2, Class5

2.3 Insulation: PVC /PE /XLPE

2.4 Cabling: multi-core stranded

2.5 Shield(if required): Copper tape or CWS or Al-plastic tape with drain wire

2.6 Inner sheath (applicable if there is an armour layer): PVC/PE

2.7 Armour layer: Galvanized steel wire / Steel tape

2.8 Outer sheath: PVC/PE/LSHF

2.9 Other characteristics: Oil resistant, Flame retardant, Anti-corrosion, UV,etc.

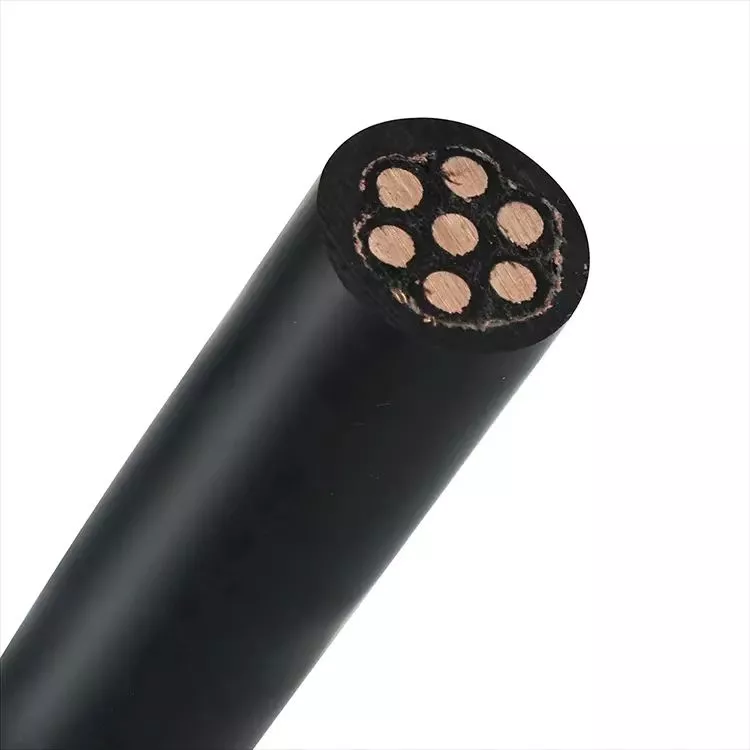

Copper Control Cable

3.Application:

These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Suitable fordirect burial applications.

4.Physical and Thermal Properties:

Conductor: Annealed copper solid Class 1 or plain copper stranded Class 2 or flexible soft stranded copper class 5

Voltage Rating: 450V/750v

Test Voltage:2500V

Temperature range During operation (fixed state): -20°C - +70°C(PVC PE),-20°C - +90°C(XLPE)

Temperature range During Installation (Mobile state): -5°C - +40°C

Minimum bending radius: 10 X Overall Diameter

Control Cable Suppliers

About us

Suke Cable Manufacturing

We have alarms on extruding insulation andjacket, to keep 100% quality.

Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.

No. of R&D Staff: 38

No. of Production Lines:Above 10

Number of Foreign Trading Staff:7

130

130 technical staff

The company has 3 factories

Our workshops and certifications

Suke Insulaion Flexible Wire Cable Manufacturing

OEM ODM Wire Cable Machine Of Workshop

Copper Heat-Resistant Wire Cable Production Workshop

Inspection Workshop Of Cable Factory

Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.

Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.

FAQ

What is building wire?

Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.

Conductor Structure of Power Cable

1. Conductors comply with IEC, AS/NZS and BSI standard requirements

2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.

3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
