Introduction:
|
Category
|
Attribute
|
Details
|
|
Industry-specific attributes
|
Insulation Material
|
XLPE
|
|
|
Application
|
Overhead
|
|
|
Conductor Material
|
Aluminum
|
|
|
Jacket
|
None
|
|
Other attributes
|
Place of Origin
|
Fujian, China
|
|
|
Origin
|
Fujian, Quanzhou City
|
|
|
Brand Name
|
Suke
|
|
|
Model Number
|
#4 Quadruplex ABC cable
|
|
|
Type
|
Low Voltage
|
|
|
Standard
|
ICEA standard
|
|
|
Construction
|
Phase conductor - concentric strand etc.
|
|
|
Certification
|
ISO:9001:2008, CCC
|
|
|
Packing
|
Fumigated wooden drum
|
|
|
Conductor
|
Aluminum
|
|
|
Item Name
|
Factory Price AAC Aluminum ABC Cable 4 Quadruplex Solution Suke
|
|
|
Rated Voltage
|
0.6/1kV
|
|
|
Color
|
Black or as requested
|
Packaging And Delivery：
Packaging Details #4 Quadruplex ABC cable
packging is :
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2)By standard wooden drum or roll.
3)Drum size:1100mm*1100mm*1100mm. or steel-wooden drums or as your request.
Port: Shanghai;Xiamen
Selling units: Single item
Single package size: 20X20X20 cm
Single gross weight: 2.000 kg
Supply Ability
Supply Ability: 200000 Kilometer/Kilometers per Month
Product Description：

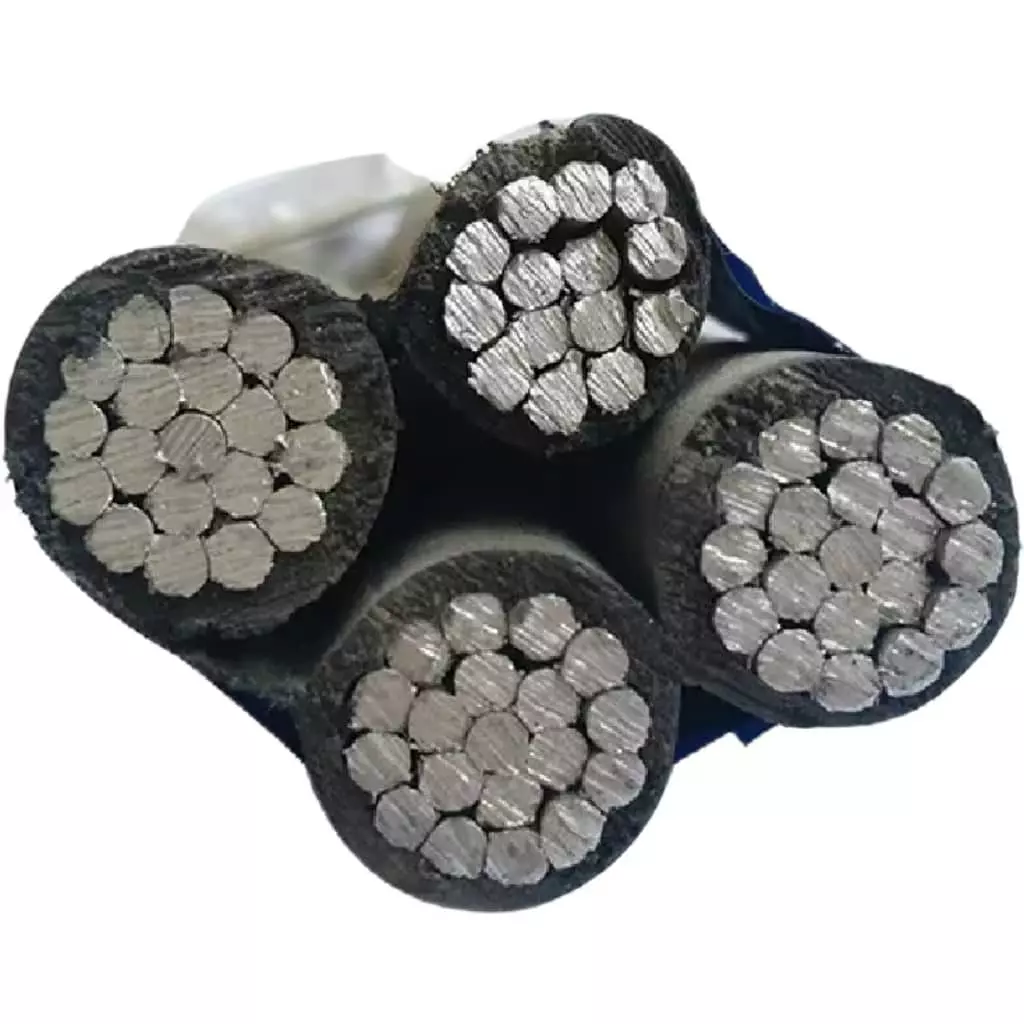

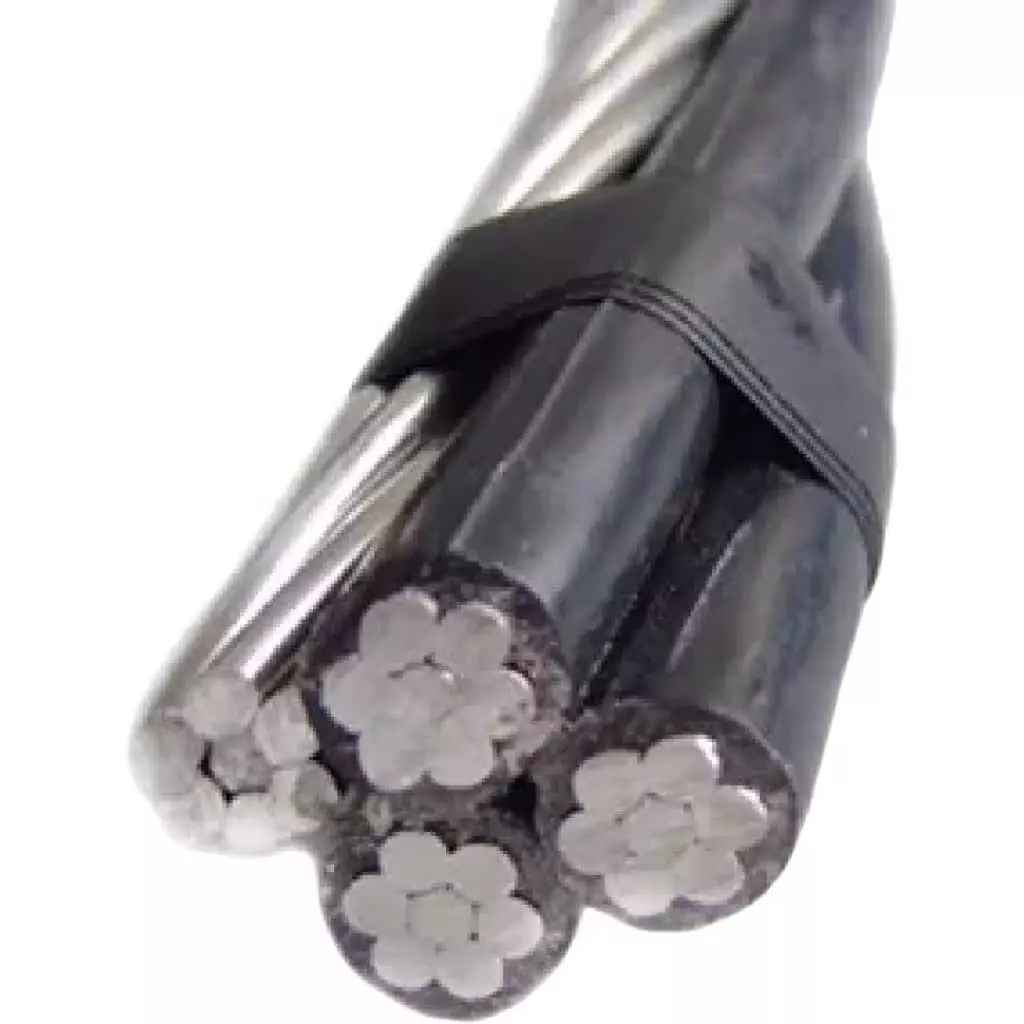

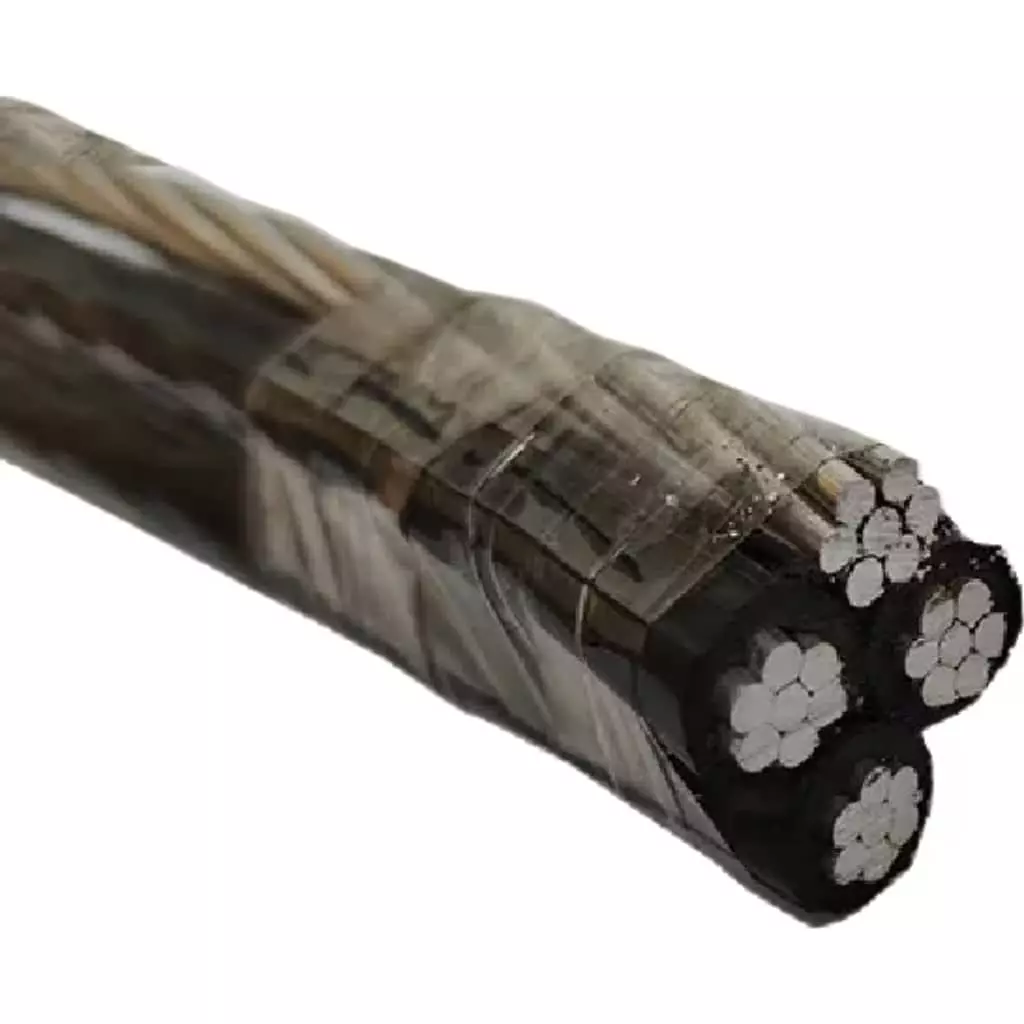

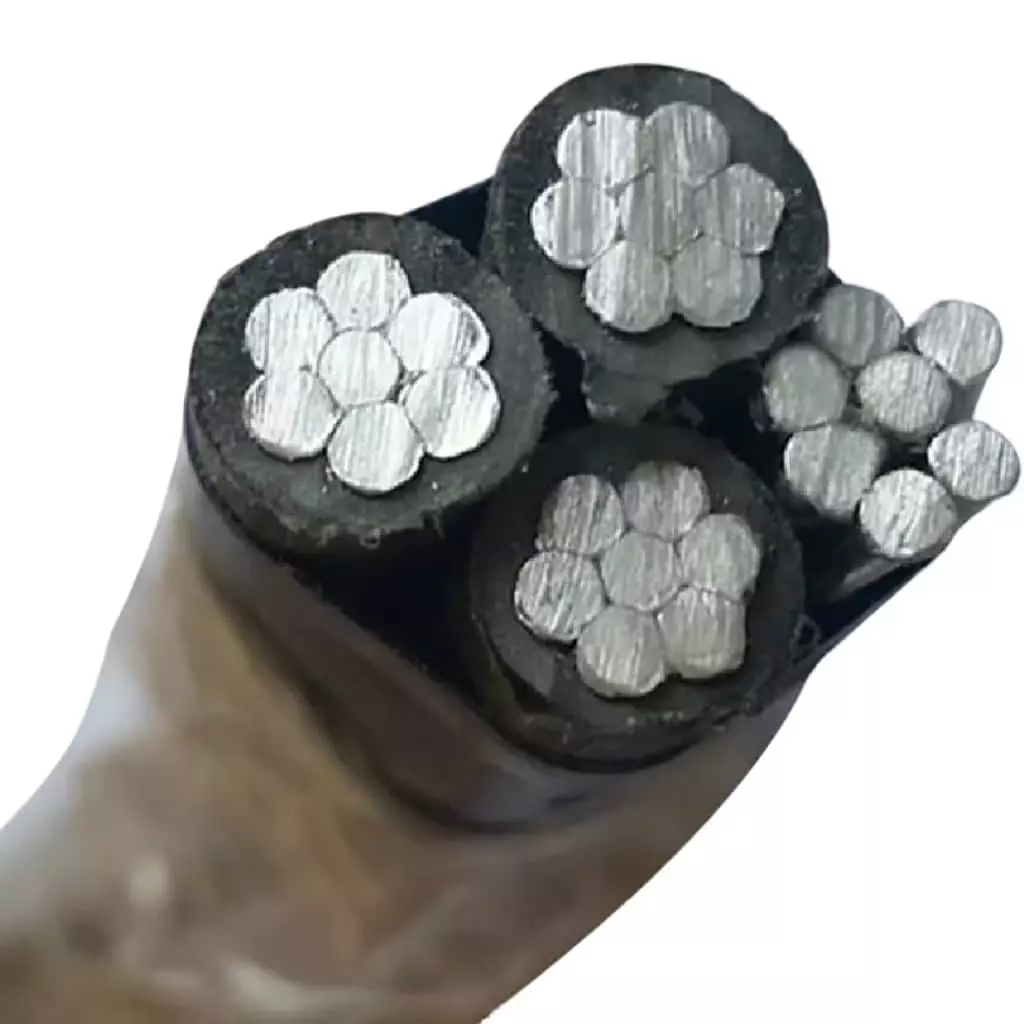

ITEM NAME: Factory Price AAC Aluminum ABC Cable 4 Quadruplex Solution Suke
Construction
1.Conductor: stranded AAC aluminum / AAA neutral conductor.
2.Insulation: XLPE/PVC/PE.
3.Neutral condcutor: Bare.
4.Rated Voltage: 600/1000V.
5.Application: Overhead.
6.Code name: Pinto.

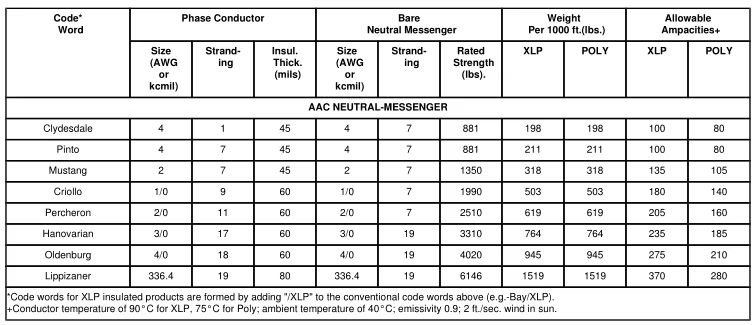

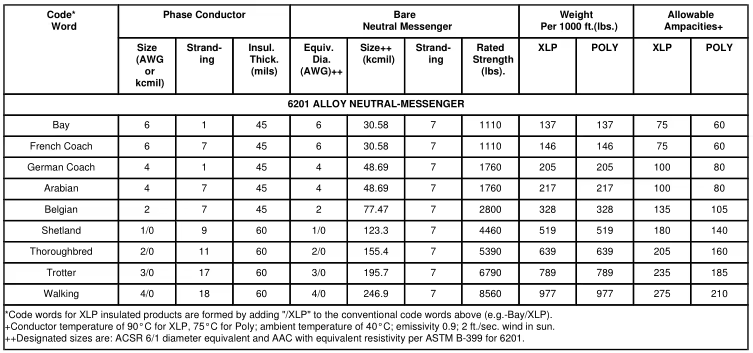

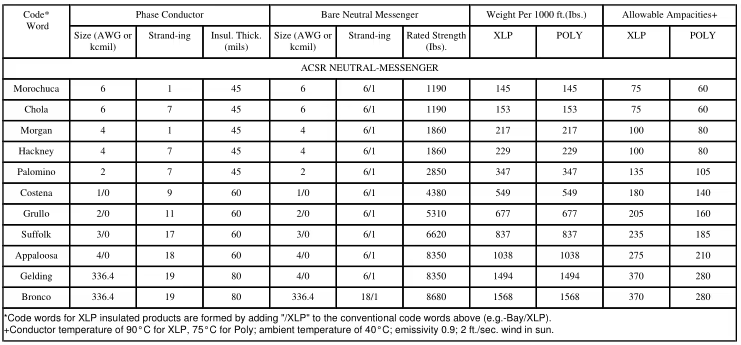

Code Name And Specification Data:
Applications：
It is preferred to use of service drop (ABC cables) instead of uninsulated conductors
at low voltage networks. service drop (ABC cables)are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages.
Voltage：
Rated voltage U0 / U = 0.6 /1 kV
VAC test voltage 5 kV
Technical Data：
Maximum operating temperature 90 degree
Maximum short-circuit temperature 250 degree. Service drop(ABC cables) are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages.
To supply 120 volt aerial service for temporary service at construction sites,as a Service Drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting. For service at 600 volts or lower at a maximum conductor temperature of 75ºC for Polyethylene insulated cables or 90ºC for Cross-Linked (XLPE) insulation.
We have alarms on extruding insulation andjacket, to keep 100% quality.
Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.
10
No. of Production Lines:Above 10
7
Number of Foreign Trading Staff:7
3
The company has 3 factories
Our workshops and certifications
Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.
Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.
Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.
What is the lifespan of a typical electrical cable?
The lifespan can vary widely based on the type of cable and environmental factors, but many cables can last 20 years or more when properly installed and maintained.
What is your sample policy?
As a supplier, we believe that samples are necessary for both of us and our policy is to provide free samples whenever possible. However, if the sample structure is very complicated and we don't have it in stock and it needs to be customised, in this case we have to charge a sample fee. About the sample shipment, you need to pay the shipping fee, you can prepay us the shipping fee we help to send it by express agent, you can also choose express shipping fee to pay.
Conductor Structure of Power Cable
1. Conductors comply with IEC, AS/NZS and BSI standard requirements
2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.
3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
